Seata 分布式事务

# Seata 分布式事务

# 分布式事务问题由来

分布式前

  • 单机单库没这个问题
  • 从1:1 -> 1:N -> N:N

单体应用被拆分成微服务应用，原来的三个模块被拆分成三个独立的应用,分别使用三个独立的数据源，业务操作需要调用三三 个服务来完成。此时每个服务内部的数据一致性由本地事务来保证， 但是全局的数据一致性问题没法保证。


一句话：一次业务操作需要跨多个数据源或需要跨多个系统进行远程调用，就会产生分布式事务问题。

# Seata术语

是什么

Seata是一款开源的分布式事务解决方案，致力于在微服务架构下提供高性能和简单易用的分布式事务服务。

官方网址 (opens new window)

能干嘛

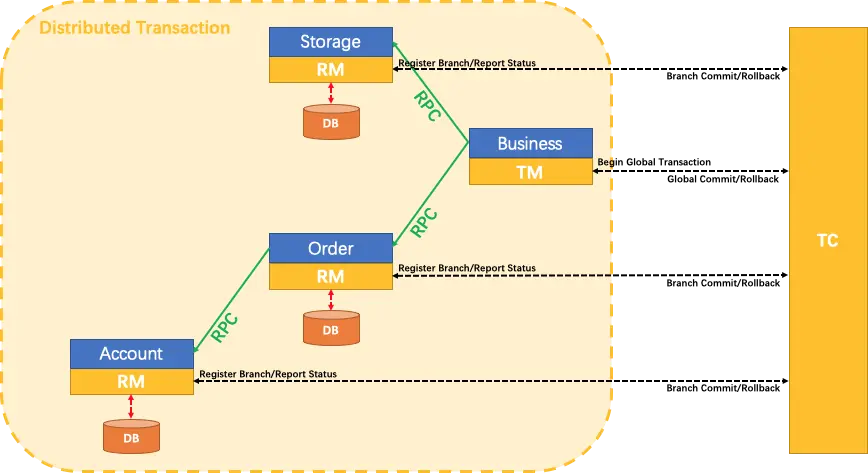

一个典型的分布式事务过程

分布式事务处理过程的一ID+三组件模型：

  • Transaction ID XID 全局唯一的事务ID
  • 三组件概念
    • TC (Transaction Coordinator) - 事务协调者：维护全局和分支事务的状态，驱动全局事务提交或回滚。
    • TM (Transaction Manager) - 事务管理器：定义全局事务的范围：开始全局事务、提交或回滚全局事务。
    • RM (Resource Manager) - 资源管理器：管理分支事务处理的资源，与TC交谈以注册分支事务和报告分支事务的状态，并驱动分支事务提交或回滚。

处理过程：

  1. TM向TC申请开启一个全局事务，全局事务创建成功并生成一个全局唯一的XID；
  2. XID在微服务调用链路的上下文中传播；
  3. RM向TC注册分支事务，将其纳入XID对应全局事务的管辖；
  4. TM向TC发起针对XID的全局提交或回滚决议；
  5. TC调度XID下管辖的全部分支事务完成提交或回滚请求。


# Seata-Server安装

去哪下

发布说明: https://github.com/seata/seata/releases (opens new window)

怎么玩

本地@Transactional

全局@GlobalTransactional

SEATA 的分布式交易解决方案


我们只需要使用一个 @GlobalTransactional 注解在业务方法上:

Seata-Server安装

官网地址 - http://seata.io/zh-cn/ (opens new window)

下载版本 - 0.9.0

seata-server-0.9.0.zip解压到指定目录并修改conf目录下的file.conf配置文件

先备份原始file.conf文件

主要修改:自定义事务组名称+事务日志存储模式为db +数据库连接信息

file.conf

service模块











service {
    ##fsp_tx_group是自定义的
    vgroup_mapping.my.test.tx_group="fsp_tx_group"
    default.grouplist = "127.0.0.1:8091"
    enableDegrade = false
    disable = false
    max.commitretry.timeout= "-1"
    max.ollbackretry.timeout= "-1"
}
1
2
3
4
5
6
7
8
9

store模块











































## transaction log store
store {
	## store mode: file, db
	## 改成db
	mode = "db"

	## file store
	file {
		dir = "sessionStore"

		# branch session size, if exceeded first try compress lockkey, still exceeded throws exceptions
		max-branch-session-size = 16384
		# globe session size, if exceeded throws exceptions
		max-global-session-size = 512
		# file buffer size, if exceeded allocate new buffer
		file-write-buffer-cache-size = 16384
		# when recover batch read size
		session.reload.read_size= 100
		# async, sync
		flush-disk-mode = async
	}
	# database store
	db {
		## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
		datasource = "dbcp"
		## mysql/oracle/h2/oceanbase etc.
		## 配置数据源
		db-type = "mysql"
		driver-class-name = "com.mysql.jdbc.Driver"
		url = "jdbc:mysql://127.0.0.1:3306/seata"
		user = "root"
		password = "你自己密码"
		min-conn= 1
		max-conn = 3
		global.table = "global_table"
		branch.table = "branch_table"
		lock-table = "lock_table"
		query-limit = 100
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

mysql5.7数据库新建库seata，在seata库里建表

建表db_store.sql在\seata-server-0.9.0\seata\conf目录里面

--- seata  分布式事务
-- the table to store GlobalSession data
CREATE DATABASE seata;
USE seata;
DROP TABLE IF EXISTS `global_table`;
CREATE TABLE `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY                         `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY                         `idx_transaction_id` (`transaction_id`)
);
-- the table to store BranchSession data
DROP TABLE IF EXISTS `branch_table`;
CREATE TABLE `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `lock_key`          VARCHAR(128),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME,
    `gmt_modified`      DATETIME,
    PRIMARY KEY (`branch_id`),
    KEY                 `idx_xid` (`xid`)
);
-- the table to store lock data
DROP TABLE IF EXISTS `lock_table`;
CREATE TABLE `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` LONG,
    `branch_id`      LONG,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`)
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

修改seata-server-0.9.0\seata\conf目录下的registry.conf配置文件















registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  # 改用为nacos
  type = "nacos"
  nacos {
  	## 加端口号
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  ...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
  • 启动Nacos,位置nacos\bin\startup.cmd
startup.cmd -m standalone
1
  • 启动Seata,位置\seata\bin\seata-server.bat
seata-server.bat
1

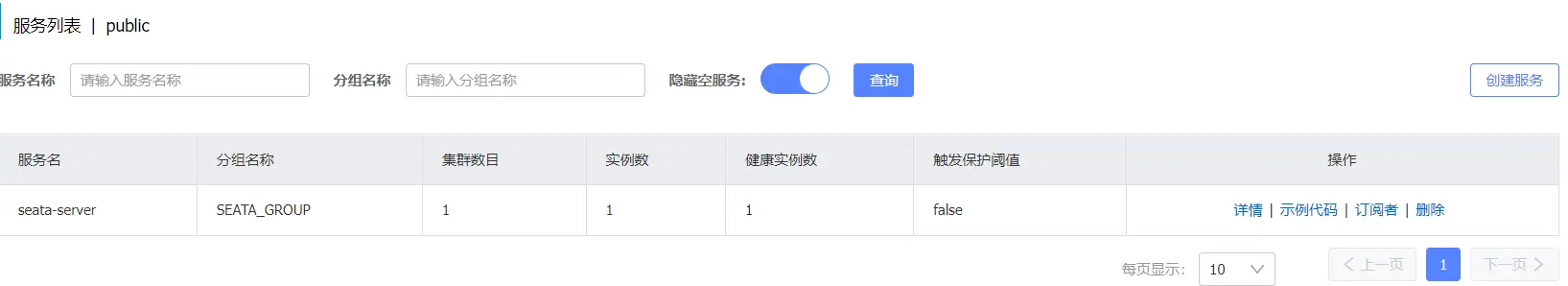

  • 查看Nacos服务列表


# Seata业务数据库准备

以下演示都需要先启动Nacos后启动Seata,保证两个都OK。

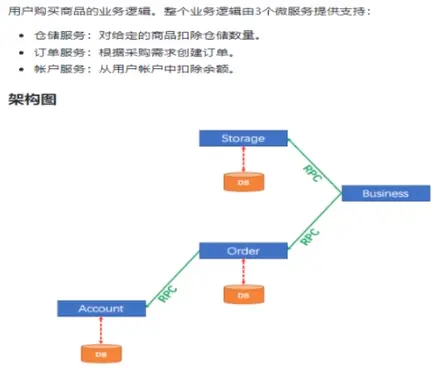

分布式事务业务说明

这里我们会创建三个服务，一个订单服务，一个库存服务，一个账户服务。

当用户下单时,会在订单服务中创建一个订单, 然后通过远程调用库存服务来扣减下单商品的库存，再通过远程调用账户服务来扣减用户账户里面的余额，最后在订单服务中修改订单状态为已完成。

该操作跨越三个数据库，有两次远程调用，很明显会有分布式事务问题。

一言蔽之，下订单—>扣库存—>减账户(余额)。

创建业务数据库

  • seata_ order：存储订单的数据库;
  • seata_ storage：存储库存的数据库;
  • seata_ account：存储账户信息的数据库。

建库SQL

CREATE DATABASE seata_order;
CREATE DATABASE seata_storage;
CREATE DATABASE seata_account;
1
2
3

按照上述3库分别建对应业务表

  • seata_order库下建t_order表
use seata_order;
CREATE TABLE t_order (
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
    `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
    `count` INT(11) DEFAULT NULL COMMENT '数量',
    `money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
    `status` INT(1) DEFAULT NULL COMMENT '订单状态: 0:创建中; 1:已完结'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
SELECT * FROM t_order;
1
2
3
4
5
6
7
8
9
10
11
  • seata_storage库下建t_storage表
use seata_storage;
CREATE TABLE t_storage (
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
`total` INT(11) DEFAULT NULL COMMENT '总库存',
`used` INT(11) DEFAULT NULL COMMENT '已用库存',
`residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
INSERT INTO seata_storage.t_storage(`id`, `product_id`, `total`, `used`, `residue`)
VALUES ('1', '1', '100', '0','100');

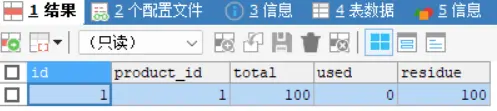

SELECT * FROM t_storage;
1
2
3
4
5
6
7
8
9
10
11
12
13
  • seata_account库下建t_account表
USE seata_account;
CREATE TABLE t_account(
	`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
	`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
	`total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
	`used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
	`residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
INSERT INTO seata_account.t_account(`id`, `user_id`, `total`, `used`, `residue`)
VALUES ('1', '1', '1000', '0', '1000');

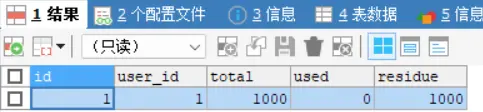

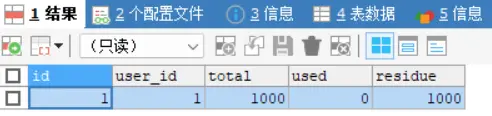

SELECT * FROM t_account;
1
2
3
4
5
6
7
8
9
10
11
12
13

按照上述3库分别建对应的回滚日志表

  • 订单-库存-账户3个库下都需要建各自的回滚日志表
  • \seata-server-0.9.0\seata\conf目录下的db_ undo_ log.sql
  • 建表SQL
-- the table to store seata xid data
-- 0.7.0+ add context
-- you must to init this sql for you business databese. the seata server not need it.
-- 此脚本必须初始化在你当前的业务数据库中，用于AT 模式XID记录。与server端无关（注：业务数据库）
-- 注意此处0.3.0+ 增加唯一索引 ux_undo_log
drop table `undo_log`;
CREATE TABLE `undo_log` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# Seata之Order-Module配置搭建

下订单 -> 减库存 -> 扣余额 -> 改（订单）状态

seata-order-service2001

POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.frx01.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>seata-order-service2001</artifactId>
    <dependencies>
        <!--nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-all</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
            <version>1.4.2</version>
        </dependency>
        <!--feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--web-actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--mysql-druid-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.37</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76

配置文件

YML

server:
  port: 2001
spring:
  application:
    name: seata-order-service
  cloud:
    alibaba:
      seata:
        #自定义事务组名称需要与seata-server中的对应
        tx-service-group: fsp_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_order
    username: root
    password: hsp
feign:
  hystrix:
    enabled: false
logging:
  level:
    io:
      seata: info
mybatis:
  mapperLocations: classpath:mapper/*.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

domain

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>{
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code,String message){
        this(code,message,null);
    }
}
1
2
3
4
5
6
7
8
9
10
11
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Order {
    private Long id;
    private Long userId;
    private Long productId;
    private Integer count;
    private BigDecimal money;
    private Integer status;//订单状态：0：创建中；1：已完结
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

file.conf

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  #thread factory for netty
  thread-factory {
    boss-thread-prefix = "NettyBoss"
    worker-thread-prefix = "NettyServerNIOWorker"
    server-executor-thread-prefix = "NettyServerBizHandler"
    share-boss-worker = false
    client-selector-thread-prefix = "NettyClientSelector"
    client-selector-thread-size = 1
    client-worker-thread-prefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    boss-thread-size = 1
    #auto default pin or 8
    worker-thread-size = 8
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}
service {
  vgroup_mapping.fsp_tx_group = "default" #修改自定义事务组名称
  default.grouplist = "127.0.0.1:8091"
  enableDegrade = false
  disable = false
  max.commit.retry.timeout = "-1"
  max.rollback.retry.timeout = "-1"
  disableGlobalTransaction = false
}
client {
  async.commit.buffer.limit = 10000
  lock {
    retry.internal = 10
    retry.times = 30
  }
  report.retry.count = 5
  tm.commit.retry.count = 1
  tm.rollback.retry.count = 1
}
## transaction log store
store {
  ## store mode: file、db
  mode = "db"
  ## file store
  file {
    dir = "sessionStore"
    # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
    max-branch-session-size = 16384
    # globe session size , if exceeded throws exceptions
    max-global-session-size = 512
    # file buffer size , if exceeded allocate new buffer
    file-write-buffer-cache-size = 16384
    # when recover batch read size
    session.reload.read_size = 100
    # async, sync
    flush-disk-mode = async
  }
  ## database store
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
    datasource = "dbcp"
    ## mysql/oracle/h2/oceanbase etc.
    db-type = "mysql"
    driver-class-name = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "hsp"
    min-conn = 1
    max-conn = 3
    global.table = "global_table"
    branch.table = "branch_table"
    lock-table = "lock_table"
    query-limit = 100
  }
}
lock {
  ## the lock store mode: local、remote
  mode = "remote"
  local {
    ## store locks in user's database
  }
  remote {
    ## store locks in the seata's server
  }
}
recovery {
  #schedule committing retry period in milliseconds
  committing-retry-period = 1000
  #schedule asyn committing retry period in milliseconds
  asyn-committing-retry-period = 1000
  #schedule rollbacking retry period in milliseconds
  rollbacking-retry-period = 1000
  #schedule timeout retry period in milliseconds
  timeout-retry-period = 1000
}
transaction {
  undo.data.validation = true
  undo.log.serialization = "jackson"
  undo.log.save.days = 7
  #schedule delete expired undo_log in milliseconds
  undo.log.delete.period = 86400000
  undo.log.table = "undo_log"
}
## metrics settings
metrics {
  enabled = false
  registry-type = "compact"
  # multi exporters use comma divided
  exporter-list = "prometheus"
  exporter-prometheus-port = 9898
}
support {
  ## spring
  spring {
    # auto proxy the DataSource bean
    datasource.autoproxy = false
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"
  nacos {
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:8761/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}
config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"
  nacos {
    serverAddr = "localhost"
    namespace = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

# Seata之Order-Module撸码(上)

Dao接口及实现

@Mapper
public interface OrderDao {
    //1.新建订单
    void create(Order order);
    //2.修改订单状态，从0改为1
    void update(@Param("userId") Long userId,@Param("status") Integer status);
}
1
2
3
4
5
6
7
8
9
?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.frx01.springcloud.dao.OrderDao">
    <resultMap id="BaseResultMap" type="com.frx01.springcloud.domain.Order">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="user_id" property="userId" jdbcType="BIGINT"/>
        <result column="product_id" property="productId" jdbcType="BIGINT"/>
        <result column="count" property="count" jdbcType="INTEGER"/>
        <result column="money" property="money" jdbcType="DECIMAL"/>
        <result column="status" property="status" jdbcType="INTEGER"/>
    </resultMap>
    <insert id="create">
        insert into t_order (id,user_id,product_id,count,money,status)
        values(null,#{userId},#{productId},#{count},#{money},0);
    </insert>
     <update id="update">
         update T_order set status = 1
         where user_id=#{userId} and status=#{status};
     </update>
</mapper>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

Service接口及实现

  • OrderService
    • OrderServiceImpl
  • StorageService
  • AccountService
public interface OrderService {
    void create(Order order);
}
1
2
3
@FeignClient(value = "seata-storage-service")
public interface StorageService {
    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}
1
2
3
4
5
6
7
@FeignClient(value = "seata-account-service")
public interface AccountService {
    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId")BigInteger userId, @RequestParam("money") BigDecimal money);
}
1
2
3
4
5
6
@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;
	/**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改状态
     */
    @Override
    public void create(Order order) {
        log.info("----------->开始新建订单");
        //1.新建订单
        orderDao.create(order);
        //2.扣减库存
        log.info("----------->订单微服务开始调用库存,做扣减Count");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("----------->订单微服务开始调用库存,做扣减end");
        //3.扣减账户
        log.info("----------->订单微服务开始调用账户，做扣减Money");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("----------->订单微服务开始调用账户，做扣减end");
        //4.修改订单状态，从零到1，1代表已经完成
        log.info("----------->修改订单状态开始");
        orderDao.update(order.getUserId(),0);
        log.info("----------->修改订单状态end");
        log.info("----------->下订单结束了，O(∩_∩)O哈哈~");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

# Seata之Order-Module撸码(下)

Controller

@RestController
public class OrderController {
    @Resource
    private OrderService orderService;
    @GetMapping("/order/create")
    public CommonResult create(Order order){
        orderService.create(order);
        return new CommonResult(200,"订单创建成功");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12

Config配置

  • MyBatisConfig
  • DataSourceProxyConfig
@Configuration
@MapperScan("com.frx01.springcloud.dao")
public class MyBatisConfig {
}
1
2
3
4
/**
 * @author frx
 * @version 1.0
 * @date 2022/9/2  0:36
 * desc:说用Seata对数据源进行代理
 */
@Configuration
public class DataSourceProxyConfig {
    @Value("${mybatis.mapperLocations}")
    private String mapperLocations;
    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource(){
        return new DruidDataSource();
    }
    @Bean
    public DataSourceProxy dataSourceProxy(DataSource dataSource){
        return new DataSourceProxy(dataSource);
    }
    @Bean
    public SqlSessionFactory sqlSessionFactory(DataSourceProxy dataSourceProxy) throws Exception{
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

主启动

//取消数据源的自动创建，而是使用自己定义的
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
@EnableDiscoveryClient
@EnableFeignClients
public class SeataOrderMainApp2001 {
    public static void main(String[] args) {
        SpringApplication.run(SeataOrderMainApp2001.class,args);
    }
}
1
2
3
4
5
6
7
8
9

# Seata之Storage-Module说明

与seata-order-service2001模块大致相同

seata- storage - service2002

POM（与seata-order-service2001模块大致相同）

YML

server:
  port: 2002
spring:
  application:
    name: seata-storage-service
  cloud:
    alibaba:
      seata:
        tx-service-group: fsp_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_storage
    username: root
    password: 123456
logging:
  level:
    io:
      seata: info
mybatis:
  mapperLocations: classpath:mapper/*.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

file.conf（与seata-order-service2001模块大致相同）

registry.conf（与seata-order-service2001模块大致相同）

domain

@Data
public class Storage {
    private Long id;
    //产品id
    private Long productId;
    //总库存
    private Integer total;
    //已用库存
    private Integer used;
    //剩余库存
    private Integer residue;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

CommonResult（与seata-order-service2001模块大致相同）

Dao接口及实现

@Mapper
public interface StorageDao {
    //扣减库存
    void decrease(@Param("productId") Long productId,@Param("count") Integer count);
}
1
2
3
4
5
6
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.frx01.springcloud.dao.StorageDao">
    <resultMap id="BaseResultMap" type="com.frx01.springcloud.domain.Storage">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="product_id" property="productId" jdbcType="BIGINT"/>
        <result column="total" property="total" jdbcType="INTEGER"/>
        <result column="used" property="used" jdbcType="INTEGER"/>
        <result column="residue" property="residue" jdbcType="INTEGER"/>
    </resultMap>
    <update id="decrease">
        UPDATE t_storage SET used = used + #{count},residue = residue - #{count}
                where product_id = #{productId}
    </update>
</mapper>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Service接口及实现

public interface StorageService {
    //扣减库存
    void decrease(Long productId,Integer count);
}
1
2
3
4
5
@Service
public class StorageServiceImpl implements StorageService {
    public static final Logger LOGGER = (Logger) LoggerFactory.getLogger(StorageServiceImpl.class);
    @Resource
    private StorageDao storageDao;
    //扣减库存
    @Override
    public void decrease(Long productId, Integer count) {
        LOGGER.info("----------->storage-service中扣减库存开始");
        storageDao.decrease(productId,count);
        LOGGER.info("----------->storage-service中扣减库存结束");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Controller

@RestController
public class StorageController {
    //扣减库存
    @Resource
    private StorageService storageService;
    @RequestMapping("/storage/decrease")
    public CommonResult decrease(Long productId,Integer count){
        storageService.decrease(productId,count);
        return new CommonResult(200,"扣减库存成功!");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12

Config配置（与seata-order-service2001模块大致相同）

主启动（与seata-order-service2001模块大致相同）

# Seata之Account-Module说明

与seata-order-service2001模块大致相同

seata- account- service2003

POM（与seata-order-service2001模块大致相同）

YML

server:
  port: 2003
spring:
  application:
    name: seata-account-service
  cloud:
    alibaba:
      seata:
        tx-service-group: fsp_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_account
    username: root
    password: hsp
feign:
  hystrix:
    enabled: false
logging:
  level:
    io:
      seata: info
mybatis:
  mapperLocations: classpath:mapper/*.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

file.conf（与seata-order-service2001模块大致相同）

registry.conf（与seata-order-service2001模块大致相同）

domain

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Account {
    private Long id;
    //用户id
    private Long userId;
    //总额度
    private BigDecimal total;
    //已用额度
    private BigDecimal used;
    //剩余额度
    private BigDecimal residue;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

CommonResult（与seata-order-service2001模块大致相同）

Dao接口及实现

@Mapper
public interface AccountDao {
    //扣减账户余额
    void decrease(@Param("userId") Long userId, @Param("money")BigDecimal money);
}
1
2
3
4
5
6
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.frx01.springcloud.dao.AccountDao">
    <resultMap id="BaseResultMap" type="com.frx01.springcloud.domain.Account">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="user_id" property="userId" jdbcType="DECIMAL"/>
        <result column="total" property="total" jdbcType="DECIMAL"/>
        <result column="used" property="used" jdbcType="DECIMAL"/>
        <result column="residue" property="residue" jdbcType="DECIMAL"/>
    </resultMap>
    <update id="decrease">
        UPDATE t_account SET residue = residue - #{money},used = used + #{money}
            WHERE userId = #{userId};
    </update>
</mapper>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Service接口及实现

public interface AccountService {
    /**
     * 扣减账户余额
     * @param userId 用户id
     * @param money 金额
     */
    void decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}
1
2
3
4
5
6
7
8
9
@Service
public class AccountServiceImpl implements AccountService {
    public static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);
    @Resource
    private AccountDao accountDao;
    //扣减账户金额
    @Override
    public void decrease(Long userId, BigDecimal money) {
        LOGGER.info("----------->account-service中扣减账户余额开始");
        accountDao.decrease(userId, money);
        LOGGER.info("----------->account-service中扣减账户余额结束");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Controller

@RestController
public class AccountController {
    @Resource
    private AccountService accountService;
    //扣减账户余额
    @RequestMapping("/account/decrease")
    public CommonResult decrease(@RequestParam("userId") Long userId,@RequestParam("money") BigDecimal money){
        accountService.decrease(userId,money);
        return new CommonResult(200,"扣减账户余额成功!");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Config配置（与seata-order-service2001模块大致相同）

主启动（与seata-order-service2001模块大致相同）

# Seata之@GlobalTransactional验证

下订单 -> 减库存 -> 扣余额 -> 改（订单）状态

数据库初始情况：

SELECT * FROM t_order;
1


SELECT * FROM t_storage;
1

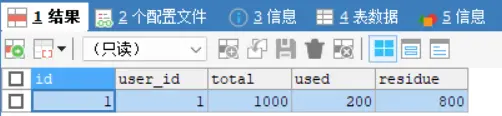

SELECT * FROM t_account;
1


正常下单 - http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100 (opens new window)


数据库正常下单后状况：

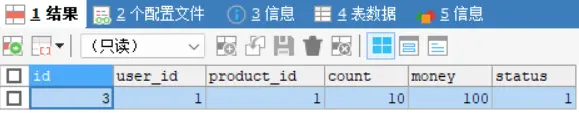

SELECT * FROM t_order;
1

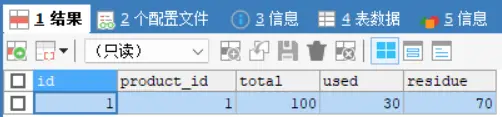

SELECT * FROM t_storage;
1

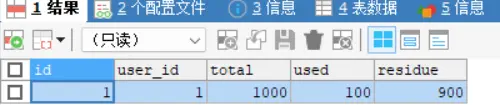

SELECT * FROM t_account;
1


超时异常，没加@GlobalTransactional

模拟AccountServiceImpl添加超时

@Service
public class AccountServiceImpl implements AccountService {
    public static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);
    @Resource
    private AccountDao accountDao;
    //扣减账户金额
    @Override
    public void decrease(Long userId, BigDecimal money) {
        LOGGER.info("----------->account-service中扣减账户余额开始");
        //模拟超时异常，全局事务回滚
        //暂停几秒钟线程
        try {
            TimeUnit.SECONDS.sleep(20);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        accountDao.decrease(userId, money);
        LOGGER.info("----------->account-service中扣减账户余额结束");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

另外，OpenFeign的调用默认时间是1s以内，所以最后会抛异常。

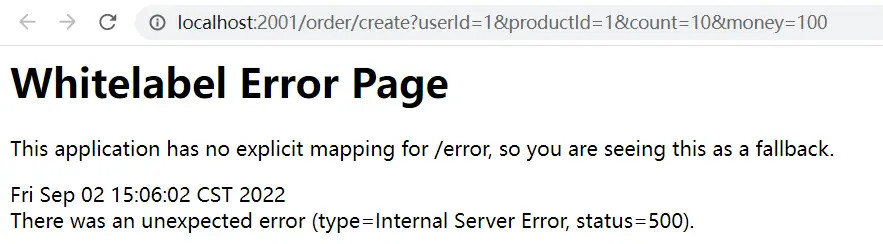

下单 - http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100 (opens new window)

数据库情况

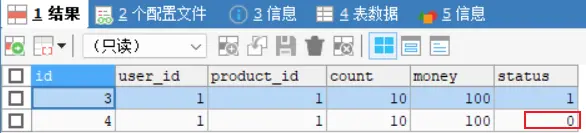

SELECT * FROM t_order;
1


SELECT * FROM t_storage;
1


SELECT * FROM t_account;
1


故障情况

  • 当库存和账户金额扣减后，订单状态并没有设置为已经完成，没有从零改为1
  • 而且由于feign的重试机制，账户余额还有可能被多次扣减

为了更清楚的看到，我把数据库数据清空。

超时异常，加了@GlobalTransactional**

用@GlobalTransactional标注OrderServiceImpl的create()方法。


























@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;
    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改状态
     */
    //rollbackFor = Exception.class表示对任意异常都进行回滚
    @GlobalTransactional(name = "fsp-tx-order",rollbackFor = Exception.class)
    @Override
    public void create(Order order) {
		...
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

下单 - http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100 (opens new window)


数据库情况

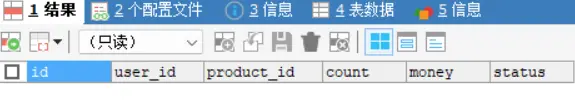

SELECT * FROM t_order;
1


SELECT * FROM t_storage;
1


SELECT * FROM t_account;
1


还是模拟AccountServiceImpl添加超时，下单后数据库数据并没有任何改变，记录都添加不进来，达到出异常，数据库回滚的效果。

# Seata之原理简介

2019年1月份蚂蚁金服和阿里巴巴共同开源的分布式事务解决方案。

Simple Extensible Autonomous Transaction Architecture，简单可扩展自治事务框架。

2020起始，用1.0以后的版本。Alina Gingertail


分布式事务的执行流程

  • TM开启分布式事务(TM向TC注册全局事务记录) ;
  • 按业务场景，编排数据库、服务等事务内资源(RM向TC汇报资源准备状态) ;
  • TM结束分布式事务，事务一阶段结束(TM通知TC提交/回滚分布式事务) ;
  • TC汇总事务信息，决定分布式事务是提交还是回滚；
  • TC通知所有RM提交/回滚资源，事务二阶段结束。

AT模式如何做到对业务的无侵入

  • 是什么

前提

  • 基于支持本地 ACID 事务的关系型数据库。
  • Java 应用，通过 JDBC 访问数据库。

整体机制

两阶段提交协议的演变：

  • 一阶段：业务数据和回滚日志记录在同一个本地事务中提交，释放本地锁和连接资源。
  • 二阶段：
    • 提交异步化，非常快速地完成。
    • 回滚通过一阶段的回滚日志进行反向补偿。

link (opens new window)

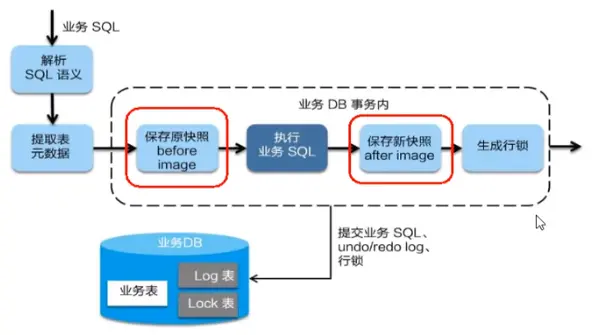

  • 一阶段加载

在一阶段，Seata会拦截“业务SQL”

  1. 解析SQL语义，找到“业务SQL" 要更新的业务数据，在业务数据被更新前，将其保存成"before image”
  2. 执行“业务SQL" 更新业务数据，在业务数据更新之后,
  3. 其保存成"after image”，最后生成行锁。

以上操作全部在一个数据库事务内完成, 这样保证了一阶段操作的原子性。

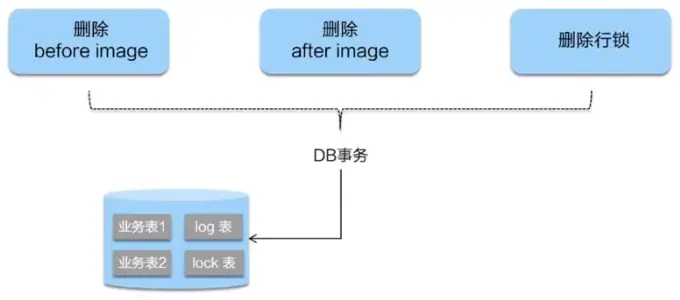

  • 二阶段提交

二阶段如果顺利提交的话，因为"业务SQL"在一阶段已经提交至数据库，所以Seata框架只需将一阶段保存的快照数据和行锁删掉，完成数据清理即可。

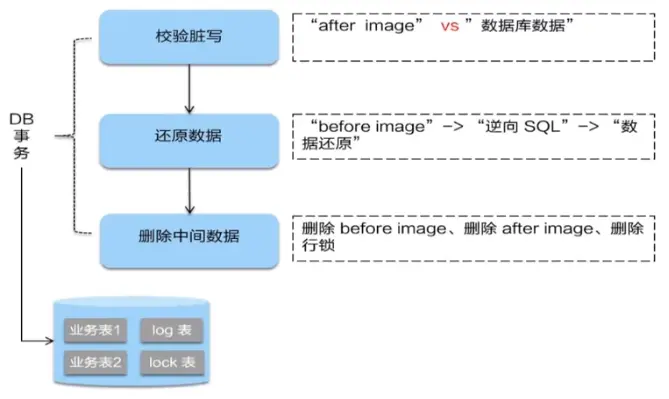

  • 二阶段回滚

二阶段如果是回滚的话，Seata 就需要回滚一阶段已经执行的 “业务SQL"，还原业务数据。

回滚方式便是用"before image"还原业务数据；但在还原前要首先要校验脏写，对比“数据库当前业务数据”和"after image"。

如果两份数据完全一致就说明没有脏写， 可以还原业务数据，如果不一致就说明有脏写, 出现脏写就需要转人工处理。


补充


帮助我改善此页面 (opens new window)
#SpringCloud
上次更新: 2024年3月20日
Sentinel 实现熔断与限流
SpringSecurity 概述

← SpringSecurity 概述→

最近更新
01
结构型模式
03-21
02
创建者模式
01-20
03
设计模式入门
12-30
更多文章>
Theme by Vdoing | Copyright © 2021-2024 xustudyxu |豫ICP备2022008983号

豫公网安备 41018302000331号
