# 尚医通-搭建环境

# 预约挂号微服务模块搭建

# 项目模块构建

  • hospital-manage：医院接口模拟端

  • yygh-parent：根目录，管理子模块：

    • common：公共模块父节点

      • common-util：工具类模块，所有模块都可以依赖于它
      • rabbit-util：rabbitmq业务封装
      • service-util：service服务的工具包，包含service服务的公共配置类，所有 service模块依赖于它

    • server-gateway：服务网关

    • model：实体类模块

    • service：api接口服务父节点

      • service-hosp：医院api接口服务

      • service-cmn：公共api接口服务

      • service-user：用户api接口服务

      • service-order：订单api接口服务

      • service-oss：文件api接口服务

      • service-sms：短信 api接口服务

      • service-task：定时任务服务

      • service-statistics：统计api接口服务

    • service-client：feign服务调用父节点

    • service-cmn-client：公共api接口

    • service-hosp-client：医院api接口 + service-order-client：订单api接口

    • service-user：用户api接口

# 父工程模块构建

  • 添加依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.frx01</groupId>
    <artifactId>yygh_parent</artifactId>
    <packaging>pom</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>yygh_parent</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <cloud.version>Hoxton.RELEASE</cloud.version>
        <alibaba.version>2.2.0.RELEASE</alibaba.version>
        <mybatis-plus.version>3.3.1</mybatis-plus.version>
        <mysql.version>5.1.46</mysql.version>
        <swagger.version>2.7.0</swagger.version>
        <jwt.version>0.7.0</jwt.version>
        <fastjson.version>1.2.29</fastjson.version>
        <httpclient.version>4.5.1</httpclient.version>
        <easyexcel.version>2.2.0-beta2</easyexcel.version>
        <aliyun.version>4.1.1</aliyun.version>
        <oss.version>3.9.1</oss.version>
        <jodatime.version>2.10.1</jodatime.version>
    </properties>
    <!--配置dependencyManagement锁定依赖的版本-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--mybatis-plus 持久层-->
            <dependency>
            <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis-plus.version}</version>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--swagger-->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>${swagger.version}</version>
            </dependency>
            <!--swagger ui-->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger-ui</artifactId>
                <version>${swagger.version}</version>
            </dependency>
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt</artifactId>
                <version>${jwt.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.httpcomponents</groupId>
                <artifactId>httpclient</artifactId>
                <version>${httpclient.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>easyexcel</artifactId>
                <version>${easyexcel.version}</version>
            </dependency>
            <dependency>
                <groupId>com.aliyun</groupId>
                <artifactId>aliyun-java-sdk-core</artifactId>
                <version>${aliyun.version}</version>
            </dependency>
            <dependency>
                <groupId>com.aliyun.oss</groupId>
                <artifactId>aliyun-sdk-oss</artifactId>
                <version>${oss.version}</version>
            </dependency>
            <!--日期时间工具-->
            <dependency>
                <groupId>joda-time</groupId>
                <artifactId>joda-time</artifactId>
                <version>${jodatime.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122

# 搭建common父模块

  1. 新建maven工程，模块名为common
  2. 删除src
  3. 配置pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>common</artifactId>
    <packaging>pom</packaging>
    <version>1.0</version>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>provided </scope>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <scope>provided </scope>
        </dependency>
        <!--lombok用来简化实体类：需要安装lombok插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>
    </dependencies>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

# 搭建common-util模块

配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath>../../pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>common-util</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
        </dependency>
        <!-- 日期工具栏依赖 -->
        <dependency>
            <groupId>joda-time</groupId>
            <artifactId>joda-time</artifactId>
        </dependency>
    </dependencies>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

# 添加公共工具类

工具类名 作用
YyghException 自定义全局异常
Result API统一返回结果封装类
ResultCodeEnum API统一返回结果状态信息
BeanUtils 实体bean copy工具类
MD5 MD5加密工具类

# 搭建service-util模块

配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>common</artifactId>
        <groupId>com.frx01</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>service-util</artifactId>
    <packaging>jar</packaging>
    <name>service-util</name>
    <description>service-util</description>
    <dependencies>
        <dependency>
            <groupId>com.frx01</groupId>
            <artifactId>common-util</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <!-- redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- spring2.X集成redis所需common-pool2-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.6.0</version>
        </dependency>
    </dependencies>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

# 添加service-util公共类

类名 作用
MybatisPlusConfig MybatisPlus配置类
CommonMetaObjectHandler Mybatis plus Handler配置类

# 搭建model模块

配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>model</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>
    <name>model</name>
    <description>model</description>
    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <scope>provided </scope>
        </dependency>
        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-mongodb</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <scope>provided </scope>
        </dependency>
    </dependencies>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

# 搭建service父模块

配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>service</artifactId>
    <packaging>pom</packaging>
    <version>1.0</version>
    <dependencies>
    <dependency>
        <groupId>com.frx01</groupId>
        <artifactId>service-util</artifactId>
        <version>1.0</version>
    </dependency>
    <dependency>
        <groupId>com.frx01</groupId>
        <artifactId>model</artifactId>
        <version>1.0</version>
    </dependency>
    <!--web-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--开发者工具-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- 服务调用feign -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!-- 服务注册 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!-- 流量控制 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
    </dependencies>
    <build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
    <resources>
    <resource>
        <directory>src/main/java</directory>
        <includes>
            <include>**/*.yml</include>
            <include>**/*.properties</include>
            <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
    </resource>
    <resource>
        <directory>src/main/resources</directory>
        <includes> <include>**/*.yml</include>
            <include>**/*.properties</include>
            <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
    </resource>
    </resources>
    </build>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

# gitee 的使用

  1. 新建仓库

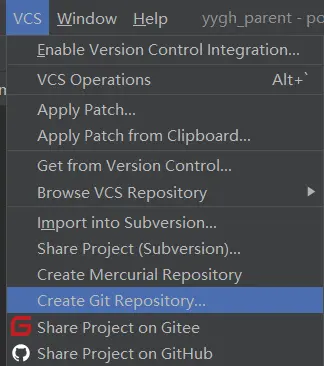

打开项目并点击菜单栏上的【VCS】--》【Import into version control】--》【Create Git Repository】创建本地仓库

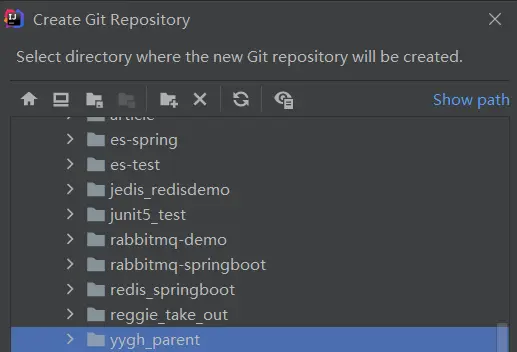

在打开的【Create Git Repository】对话框内选择本地仓库的位置，这里我选择项目的根目录。

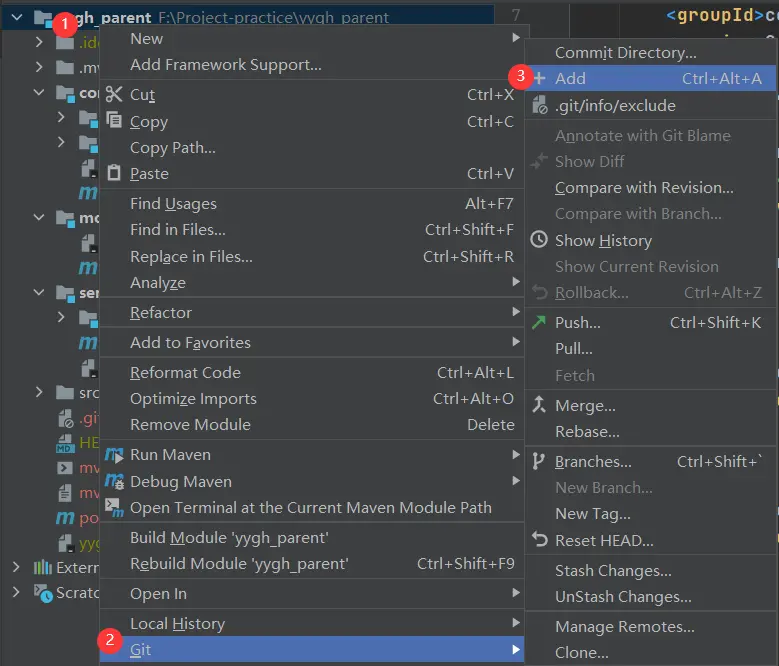

右击项目点击【Git】--》【Add】，接着点击【Git】--》【Commit Directory】在打开的窗口中选择要上传到本地仓库的代码并添加注释后提交到本地仓库内。

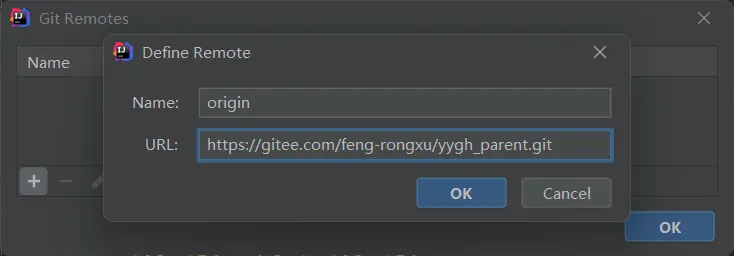

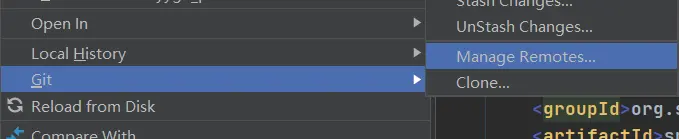

右击项目点击【Git】--》【Manage Remotes...】窗口中添加码云的远程仓库。



点击【OK】后接着输入码云的账号密码。

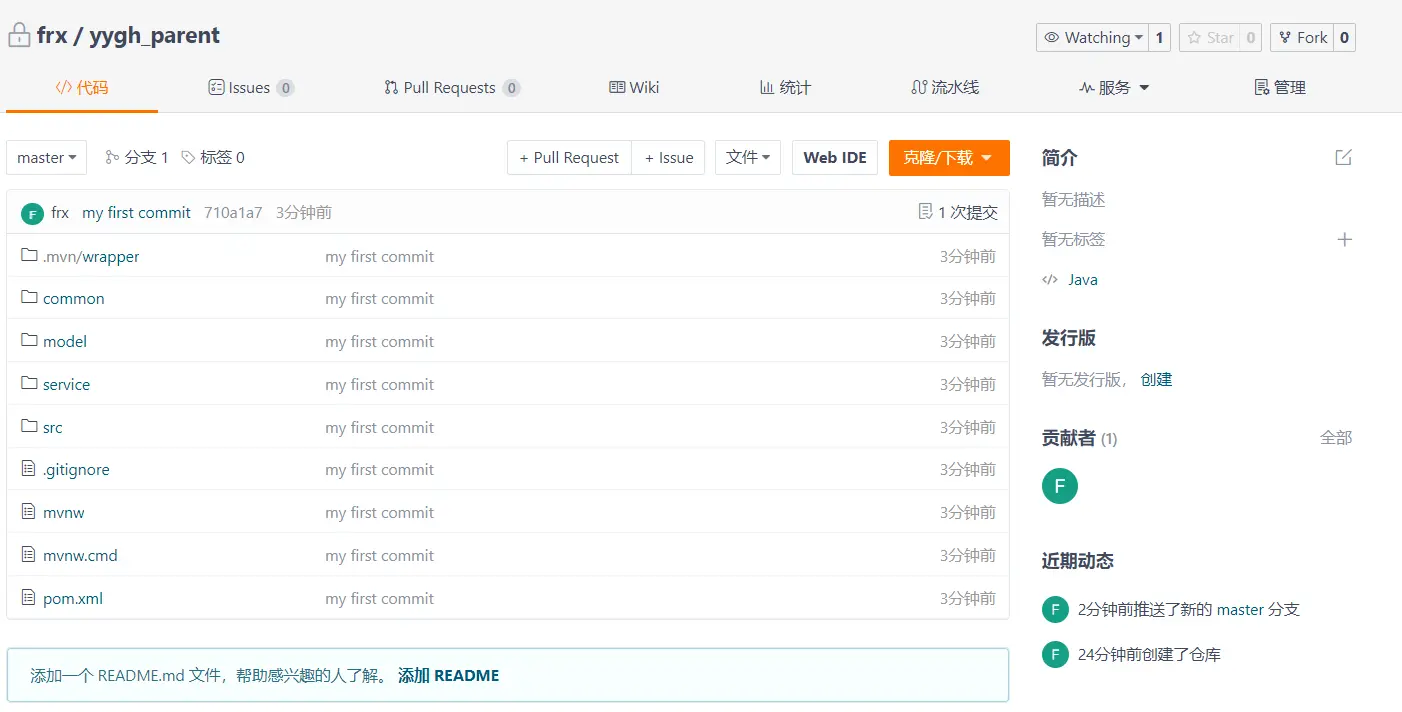

上传代码到码云，右击项目点击【Git】--》【Repository】--》【Push...】在打开的【Push commits】内可以看到已提交到本地仓库的提交信息。点击【Push】按钮将本地仓库的代码上传到码云上，上传成功后就可以在码云上看到。


帮助我改善此页面 (opens new window)
#中高进阶篇
上次更新: 2024年3月20日
尚医通-项目概述
尚医通-后台接口

← 尚医通-后台接口→

最近更新
01
结构型模式
03-21
02
创建者模式
01-20
03
设计模式入门
12-30
更多文章>
Theme by Vdoing | Copyright © 2021-2024 xustudyxu |豫ICP备2022008983号

豫公网安备 41018302000331号
