RESTful案例

# RESTful案例

# 准备工作

和传统 CRUD 一样，实现对员工信息的增删改查。

  • 搭建环境

  • 准备实体类

    package com.atguigu.mvc.bean;
public class Employee {
   private Integer id;
   private String lastName;
   private String email;
   //1 male, 0 female
   private Integer gender;
   public Integer getId() {
      return id;
   }
   public void setId(Integer id) {
      this.id = id;
   }
   public String getLastName() {
      return lastName;
   }
   public void setLastName(String lastName) {
      this.lastName = lastName;
   }
   public String getEmail() {
      return email;
   }
   public void setEmail(String email) {
      this.email = email;
   }
   public Integer getGender() {
      return gender;
   }
   public void setGender(Integer gender) {
      this.gender = gender;
   }
   public Employee(Integer id, String lastName, String email, Integer gender) {
      super();
      this.id = id;
      this.lastName = lastName;
      this.email = email;
      this.gender = gender;
   }
   public Employee() {
   }
}
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54

  • 准备dao模拟数据

    package com.atguigu.mvc.dao;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;
import com.atguigu.mvc.bean.Employee;
import org.springframework.stereotype.Repository;
@Repository
public class EmployeeDao {
   private static Map<Integer, Employee> employees = null;
   static{
      employees = new HashMap<Integer, Employee>();
      employees.put(1001, new Employee(1001, "E-AA", "aa@163.com", 1));
      employees.put(1002, new Employee(1002, "E-BB", "bb@163.com", 1));
      employees.put(1003, new Employee(1003, "E-CC", "cc@163.com", 0));
      employees.put(1004, new Employee(1004, "E-DD", "dd@163.com", 0));
      employees.put(1005, new Employee(1005, "E-EE", "ee@163.com", 1));
   }
   private static Integer initId = 1006;
   public void save(Employee employee){
      if(employee.getId() == null){
         employee.setId(initId++);
      }
      employees.put(employee.getId(), employee);
   }
   public Collection<Employee> getAll(){------------
      return employees.values();
   }
   public Employee get(Integer id){
      return employees.get(id);
   }
   public void delete(Integer id){
      employees.remove(id);
   }
}
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46

# 功能清单

功能 URL 地址 请求方式
访问首页√ / GET
查询全部数据√ /employee GET
删除√ /employee/2 DELETE
跳转到添加数据页面√ /toAdd GET
执行保存√ /employee POST
跳转到更新数据页面√ /employee/2 GET
执行更新√ /employee PUT

# 具体功能：访问首页

# a>配置view-controller

<mvc:view-controller path="/" view-name="index"/>
1

# b>创建页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8" >
    <title>Title</title>
</head>
<body>
<h1>首页</h1>
<a th:href="@{/employee}">访问员工信息</a>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11

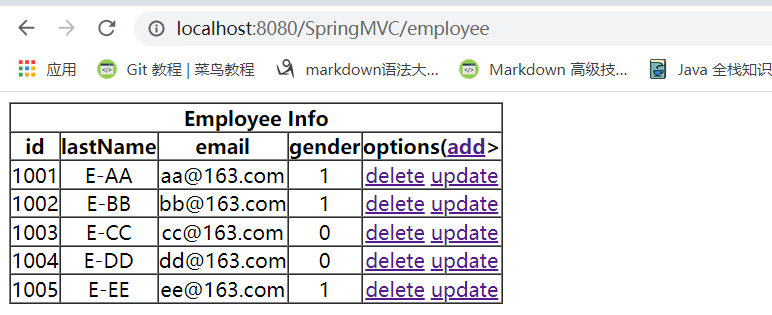

# 具体功能：查询所有员工数据

# a>控制器方法

@RequestMapping(value = "/employee", method = RequestMethod.GET)
public String getEmployeeList(Model model){
    Collection<Employee> employeeList = employeeDao.getAll();
    model.addAttribute("employeeList", employeeList);
    return "employee_list";
}
1
2
3
4
5
6

# b>创建employee_list.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Employee Info</title>
    <script type="text/javascript" th:src="@{/static/js/vue.js}"></script>
</head>
<body>
    <table border="1" cellpadding="0" cellspacing="0" style="text-align: center;" id="dataTable">
        <tr>
            <th colspan="5">Employee Info</th>
        </tr>
        <tr>
            <th>id</th>
            <th>lastName</th>
            <th>email</th>
            <th>gender</th>
            <th>options(<a th:href="@{/toAdd}">add</a>)</th>
        </tr>
        <tr th:each="employee : ${employeeList}">
            <td th:text="${employee.id}"></td>
            <td th:text="${employee.lastName}"></td>
            <td th:text="${employee.email}"></td>
            <td th:text="${employee.gender}"></td>
            <td>
                <a class="deleteA" @click="deleteEmployee" th:href="@{'/employee/'+${employee.id}}">delete</a>
                <a th:href="@{'/employee/'+${employee.id}}">update</a>
            </td>
        </tr>
    </table>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

# 具体功能：删除

# a>创建处理delete请求方式的表单

<!-- 作用：通过超链接控制表单的提交，将post请求转换为delete请求 -->
<form id="delete_form" method="post">
    <!-- HiddenHttpMethodFilter要求：必须传输_method请求参数，并且值为最终的请求方式 -->
    <input type="hidden" name="_method" value="delete"/>
</form>
1
2
3
4
5

# b>删除超链接绑定点击事件

引入vue.js

<script type="text/javascript" th:src="@{/static/js/vue.js}"></script>
1

删除超链接

<a class="deleteA" @click="deleteEmployee" th:href="@{'/employee/'+${employee.id}}">delete</a>
1

通过vue处理点击事件

<script type="text/javascript">
    var vue = new Vue({
        el:"#dataTable",
        methods:{
            //event表示当前事件
            deleteEmployee:function (event) {
                //通过id获取表单标签
                var delete_form = document.getElementById("delete_form");
                //将触发事件的超链接的href属性为表单的action属性赋值
                delete_form.action = event.target.href;
                //提交表单
                delete_form.submit();
                //阻止超链接的默认跳转行为
                event.preventDefault();
            }
        }
    });
</script>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

# c>控制器方法

@RequestMapping(value = "/employee/{id}", method = RequestMethod.DELETE)
public String deleteEmployee(@PathVariable("id") Integer id){
    employeeDao.delete(id);
    return "redirect:/employee";
}
1
2
3
4
5

# 具体功能：跳转到添加数据页面

# a>配置view-controller

<mvc:view-controller path="/toAdd" view-name="employee_add"></mvc:view-controller>
1

# b>创建employee_add.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Add Employee</title>
</head>
<body>
<form th:action="@{/employee}" method="post">
    lastName:<input type="text" name="lastName"><br>
    email:<input type="text" name="email"><br>
    gender:<input type="radio" name="gender" value="1">male
    <input type="radio" name="gender" value="0">female<br>
    <input type="submit" value="add"><br>
</form>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

# 具体功能：执行保存

# >控制器方法

@RequestMapping(value = "/employee", method = RequestMethod.POST)
public String addEmployee(Employee employee){
    employeeDao.save(employee);
    return "redirect:/employee";
}
1
2
3
4
5

# 具体功能：跳转到更新数据页面

# a>修改超链接

<a th:href="@{'/employee/'+${employee.id}}">update</a>
1

# b>控制器方法

@RequestMapping(value = "/employee/{id}", method = RequestMethod.GET)
public String getEmployeeById(@PathVariable("id") Integer id, Model model){
    Employee employee = employeeDao.get(id);
    model.addAttribute("employee", employee);
    return "employee_update";
}
1
2
3
4
5
6

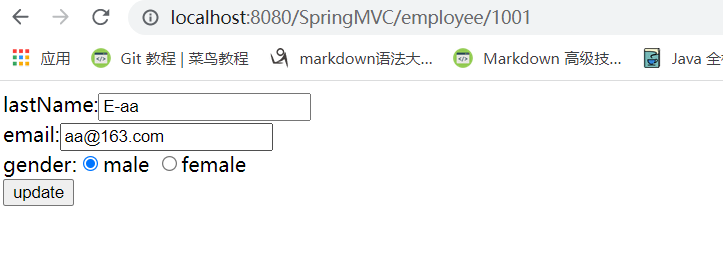

# c>创建employee_update.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Update Employee</title>
</head>
<body>
<form th:action="@{/employee}" method="post">
    <input type="hidden" name="_method" value="put">
    <input type="hidden" name="id" th:value="${employee.id}">
    lastName:<input type="text" name="lastName" th:value="${employee.lastName}"><br>
    email:<input type="text" name="email" th:value="${employee.email}"><br>
    <!--
        th:field="${employee.gender}"可用于单选框或复选框的回显
        若单选框的value和employee.gender的值一致，则添加checked="checked"属性
    -->
    gender:<input type="radio" name="gender" value="1" th:field="${employee.gender}">male
    <input type="radio" name="gender" value="0" th:field="${employee.gender}">female<br>
    <input type="submit" value="update"><br>
</form>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

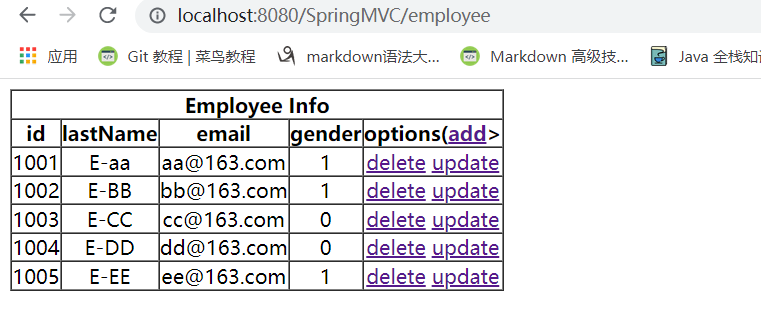

# 具体功能：执行更新

# a>控制器方法

@RequestMapping(value = "/employee", method = RequestMethod.PUT)
public String updateEmployee(Employee employee){
    employeeDao.save(employee);
    return "redirect:/employee";
}
1
2
3
4
5
Click to view the code writen by author\
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/20  17:26
 */
@Controller
public class EmployeeController {
    @Autowired
    private EmployeeDao employeeDao;
    @RequestMapping(value = "/employee",method = RequestMethod.GET)
    public String getAllEmployee(Model model){
        Collection<Employee> employeeList = employeeDao.getAll();
        model.addAttribute("employeeList",employeeList);
        return "Employee_list";
    }
    @RequestMapping(value = "/employee/{id}",method=RequestMethod.DELETE)
    public String deleteEmployee(@PathVariable("id") Integer id){
        employeeDao.delete(id);
        return "redirect:/employee";
    }
    @RequestMapping(value = "/employee",method = RequestMethod.POST)
    public String addEmployee(Employee employee){
        employeeDao.save(employee);
        return "redirect:/employee";
    }
    @RequestMapping(value = "/employee/{id}",method = RequestMethod.GET)
    public String getEmployeeById(@PathVariable("id") Integer id,Model model){
        Employee employee = employeeDao.get(id);
        model.addAttribute("employee",employee);
        return "Employee_update";
    }
    @RequestMapping(value = "/employee",method = RequestMethod.PUT)
    public String updateEmployee(Employee employee){
        employeeDao.save(employee);
        return "redirect:/employee";
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>首页</title>
</head>
<body>
<h1>首页</h1>
<a th:href="@{/employee}">查看员工信息</a>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Employee-Info</title>
</head>
<body>
    <table id="dataTable" border="1" cellspacing="0" cellpadding="0" style="text-align:center">
        <tr>
            <th colspan="5">Employee Info</th>
        </tr>
        <tr>
            <th>id</th>
            <th>lastName</th>
            <th>email</th>
            <th>gender</th>
            <th>options(<a th:href="@{/toAdd}")>add</a>></th>
        </tr>
        <tr th:each="employee:${employeeList}">
            <td th:text="${employee.id}"></td>
            <td th:text="${employee.lastName}"></td>
            <td th:text="${employee.email}"></td>
            <td th:text="${employee.gender}"></td>
            <td>
                <a class="deleteA" @click="deleteEmployee" th:href="@{'/employee/'+${employee.id}}">delete</a>
                <a th:href="@{'/employee/'+${employee.id}}">update</a></a>
            </td>
        </tr>
    </table>
    <form id="deleteForm" method="post">
        <input type="hidden" name="_method" value="delete">
    </form>
    <script type="text/javascript" th:src="@{/static/js/vue.js}"></script>
    <script type="text/javascript">
        var vue=new Vue({
            el:"#dataTable",
            methods:{
                deleteEmployee:function (event){
                    //根据id获取表单元素
                    var deleteForm=document.getElementById("deleteForm");
                    //将触发点击事件的超链接的href属性赋值给表单的action
                    deleteForm.action=event.target.href;
                    //提交表单
                    deleteForm.submit();
                    //取消超链接的默认行为
                    event.preventDefault();
                }
            }
        })
    </script>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>add Employee</title>
</head>
<body>
<form th:action="@{/employee}" method="post">
    lastName:<input type="text" name="lastName"><br>
    email:<input type="text" name="email"><br>
    gender:<input type="radio" name="gender" value="1">male
    <input type="radio" name="gender" value="0">female<br>
    <input type="submit" name="add"><br>
</form>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Update Employee</title>
</head>
<body>
<form th:action="@{/employee}" method="post">
    <input type="hidden" name="_method" value="put">
    <input type="hidden" name="id" th:value="${employee.id}">
    lastName:<input type="text" name="lastName" th:value="${employee.lastName}"><br>
    email:<input type="text" name="email" th:value="${employee.email}"><br>
    gender:<input type="radio" name="gender" value="1" th:field="${employee.gender}">male
    <input type="radio" name="gender" value="0" th:field="${employee.gender}">female<br>
    <input type="submit" value="update"><br>
</form>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
  • 访问URL

01

  • 测试更新

01

  • 结果

01

帮助我改善此页面 (opens new window)
#SpringMVC
上次更新: 2024年3月20日
RESTFul
HttpMessageConverter

← HttpMessageConverter→

最近更新
01
结构型模式
03-21
02
创建者模式
01-20
03
设计模式入门
12-30
更多文章>
Theme by Vdoing | Copyright © 2021-2024 xustudyxu |豫ICP备2022008983号

豫公网安备 41018302000331号
