注解配置SpringMVC

# 注解配置SpringMVC

使用配置类和注解代替web.xml和SpringMVC配置文件的功能

# 创建初始化类，代替web.xml

在Servlet3.0环境中，容器会在类路径中查找实现javax.servlet.ServletContainerInitializer接口的类，如果找到的话就用它来配置Servlet容器。 Spring提供了这个接口的实现，名为SpringServletContainerInitializer，这个类反过来又会查找实现WebApplicationInitializer的类并将配置的任务交给它们来完成。Spring3.2引入了一个便利的WebApplicationInitializer基础实现，名为AbstractAnnotationConfigDispatcherServletInitializer，当我们的类扩展了AbstractAnnotationConfigDispatcherServletInitializer并将其部署到Servlet3.0容器的时候，容器会自动发现它，并用它来配置Servlet上下文。

public class WebInit extends AbstractAnnotationConfigDispatcherServletInitializer {
    /**
     * 指定spring的配置类
     * @return
     */
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{SpringConfig.class};
    }
    /**
     * 指定SpringMVC的配置类
     * @return
     */
    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{WebConfig.class};
    }
    /**
     * 指定DispatcherServlet的映射规则，即url-pattern
     * @return
     */
    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }
    /**
     * 添加过滤器
     * @return
     */
    @Override
    protected Filter[] getServletFilters() {
        CharacterEncodingFilter encodingFilter = new CharacterEncodingFilter();
        encodingFilter.setEncoding("UTF-8");
        encodingFilter.setForceRequestEncoding(true);
        HiddenHttpMethodFilter hiddenHttpMethodFilter = new HiddenHttpMethodFilter();
        return new Filter[]{encodingFilter, hiddenHttpMethodFilter};
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

# 创建SpringConfig配置类，代替spring的配置文件

@Configuration
public class SpringConfig {
	//ssm整合之后，spring的配置信息写在此类中
}
1
2
3
4

# 创建WebConfig配置类，代替SpringMVC的配置文件

@Configuration
//扫描组件
@ComponentScan("com.atguigu.mvc.controller")
//开启MVC注解驱动
@EnableWebMvc
public class WebConfig implements WebMvcConfigurer {
    //使用默认的servlet处理静态资源
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }
    //配置文件上传解析器
    @Bean
    public CommonsMultipartResolver multipartResolver(){
        return new CommonsMultipartResolver();
    }
    //配置拦截器
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        FirstInterceptor firstInterceptor = new FirstInterceptor();
        registry.addInterceptor(firstInterceptor).addPathPatterns("/**");
    }
    //配置视图控制
    /*@Override
    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/").setViewName("index");
    }*/
    //配置异常映射
    /*@Override
    public void configureHandlerExceptionResolvers(List<HandlerExceptionResolver> resolvers) {
        SimpleMappingExceptionResolver exceptionResolver = new SimpleMappingExceptionResolver();
        Properties prop = new Properties();
        prop.setProperty("java.lang.ArithmeticException", "error");
        //设置异常映射
        exceptionResolver.setExceptionMappings(prop);
        //设置共享异常信息的键
        exceptionResolver.setExceptionAttribute("ex");
        resolvers.add(exceptionResolver);
    }*/
    //配置生成模板解析器
    @Bean
    public ITemplateResolver templateResolver() {
        WebApplicationContext webApplicationContext = ContextLoader.getCurrentWebApplicationContext();
        // ServletContextTemplateResolver需要一个ServletContext作为构造参数，可通过WebApplicationContext 的方法获得
        ServletContextTemplateResolver templateResolver = new ServletContextTemplateResolver(
                webApplicationContext.getServletContext());
        templateResolver.setPrefix("/WEB-INF/templates/");
        templateResolver.setSuffix(".html");
        templateResolver.setCharacterEncoding("UTF-8");
        templateResolver.setTemplateMode(TemplateMode.HTML);
        return templateResolver;
    }
    //生成模板引擎并为模板引擎注入模板解析器
    @Bean
    public SpringTemplateEngine templateEngine(ITemplateResolver templateResolver) {
        SpringTemplateEngine templateEngine = new SpringTemplateEngine();
        templateEngine.setTemplateResolver(templateResolver);
        return templateEngine;
    }
    //生成视图解析器并未解析器注入模板引擎
    @Bean
    public ViewResolver viewResolver(SpringTemplateEngine templateEngine) {
        ThymeleafViewResolver viewResolver = new ThymeleafViewResolver();
        viewResolver.setCharacterEncoding("UTF-8");
        viewResolver.setTemplateEngine(templateEngine);
        return viewResolver;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

# 测试功能

@RequestMapping("/")
public String index(){
    return "index";
}
1
2
3
4
Click to view the code writen by author
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/24  13:54
 */
@Configuration //
public class SpringConfig {
}
1
2
3
4
5
6
7
8
9
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/24  13:55
 */
/**代替SpringMVC的配置文件
 * 1. 扫描组件 2.视图解析器 3.view-controller 4.default-servlet-handler
 * 5.mvc注解驱动 6.文件上传解析器 7.异常处理 8.拦截器
 */
//将当前类标示为一个配置类
@Configuration
@ComponentScan("com.frx01.mvc.controller") //扫描组件 1
@EnableWebMvc  //开启mvc注解驱动 5
public class WebConfig  implements WebMvcConfigurer{
    //default-servlet-handler 4
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }
    //拦截器 8
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        TestInterceptor testInterceptor = new TestInterceptor();
        registry.addInterceptor(testInterceptor).addPathPatterns("/**");
    }
    //view-controller 3
    @Override
    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/hello").setViewName("hello");
    }
    //文件上传解析器
    @Bean
    public MultipartResolver multipartResolver(){
        CommonsMultipartResolver commonsMultipartResolver = new CommonsMultipartResolver();
        return commonsMultipartResolver;
    }
    //异常处理
    @Override
    public void configureHandlerExceptionResolvers(List<HandlerExceptionResolver> resolvers) {
        SimpleMappingExceptionResolver exceptionResolver=new SimpleMappingExceptionResolver();
        Properties prop = new Properties();
        prop.setProperty("java.lang.ArithmeticException","error");
        exceptionResolver.setExceptionMappings(prop);
        exceptionResolver.setExceptionAttribute("exception");
        resolvers.add(exceptionResolver);
    }
    //配置生成模板解析器
    @Bean
    public ITemplateResolver templateResolver(){
        WebApplicationContext webApplicationContext = ContextLoader.getCurrentWebApplicationContext();
        // ServletContextTemplateResolver需要一个ServletContext作为构造参数，可通过WebApplicationContext 的方法获得
        ServletContextTemplateResolver templateResolver = new ServletContextTemplateResolver(webApplicationContext.getServletContext());
        templateResolver.setPrefix("/WEB-INF/templates/");
        templateResolver.setSuffix(".html");
        templateResolver.setCharacterEncoding("UTF-8");
        templateResolver.setTemplateMode(TemplateMode.HTML);
        return templateResolver;
    }
    //生成模板引擎并为模板引擎注入模板解析器
    @Bean
    public SpringTemplateEngine templateEngine(ITemplateResolver templateResolver) {
        SpringTemplateEngine templateEngine = new SpringTemplateEngine();
        templateEngine.setTemplateResolver(templateResolver);
        return templateEngine;
    }
    //生成视图解析器并未解析器注入模板引擎
    @Bean
    public ViewResolver viewResolver(SpringTemplateEngine templateEngine) {
        ThymeleafViewResolver viewResolver = new ThymeleafViewResolver();
        viewResolver.setCharacterEncoding("UTF-8");
        viewResolver.setTemplateEngine(templateEngine);
        return viewResolver;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/24  13:50
 */
//web工程的初始化类，用来代替web.xml
public class WebInit extends AbstractAnnotationConfigDispatcherServletInitializer {
    /**
     * 指定Spring的配置类
     * @return
     */
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{SpringConfig.class};
    }
    /**
     * 指定SpringMVC的配置类
     * @return
     */
    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{WebConfig.class};
    }
    /**
     * 指定DispatcherServlet的映射规则，即url-pattern
     * @return
     */
    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }
    /**
     * 注册过滤器
     * @return
     */
    @Override
    protected Filter[] getServletFilters() {
        CharacterEncodingFilter characterEncodingFilter = new CharacterEncodingFilter();
        characterEncodingFilter.setEncoding("UTF-8");
        characterEncodingFilter.setForceResponseEncoding(true);
        HiddenHttpMethodFilter hiddenHttpMethodFilter = new HiddenHttpMethodFilter();
        return new Filter[]{characterEncodingFilter,hiddenHttpMethodFilter};
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/24  14:32
 */
public class TestInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("TestInterceptor--preHandle");
        return true;
    }
    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
    }
    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
/**
 * @author frx
 * @version 1.0
 * @date 2022/1/24  14:19
 */
@Controller
public class TestController {
    @RequestMapping("/")
    public String index(){
        return "index";
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
首页
</body>
</html>
1
2
3
4
5
6
7
8
9
10
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1>hello</h1>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
出现错误
</body>
</html>
1
2
3
4
5
6
7
8
9
10

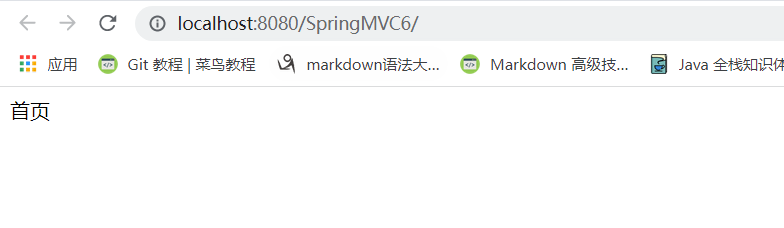

  • 访问URL
