# 瑞吉外卖-套餐管理业务开发

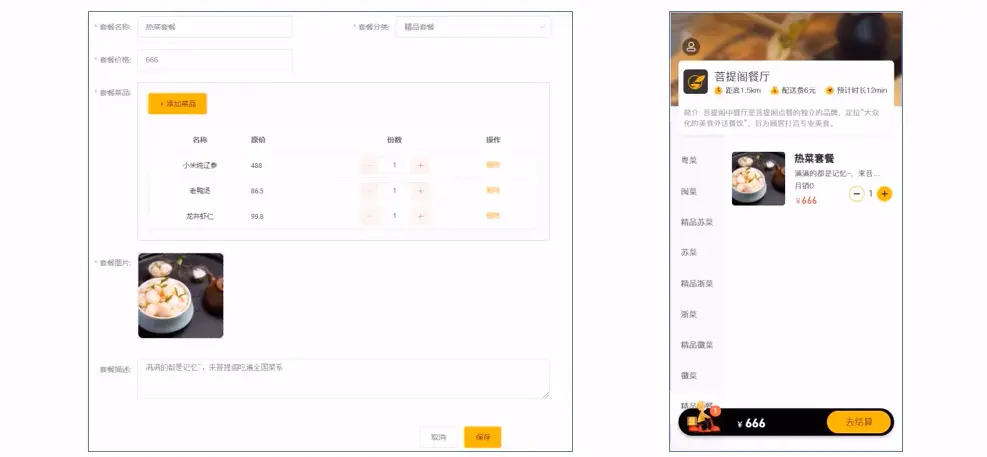

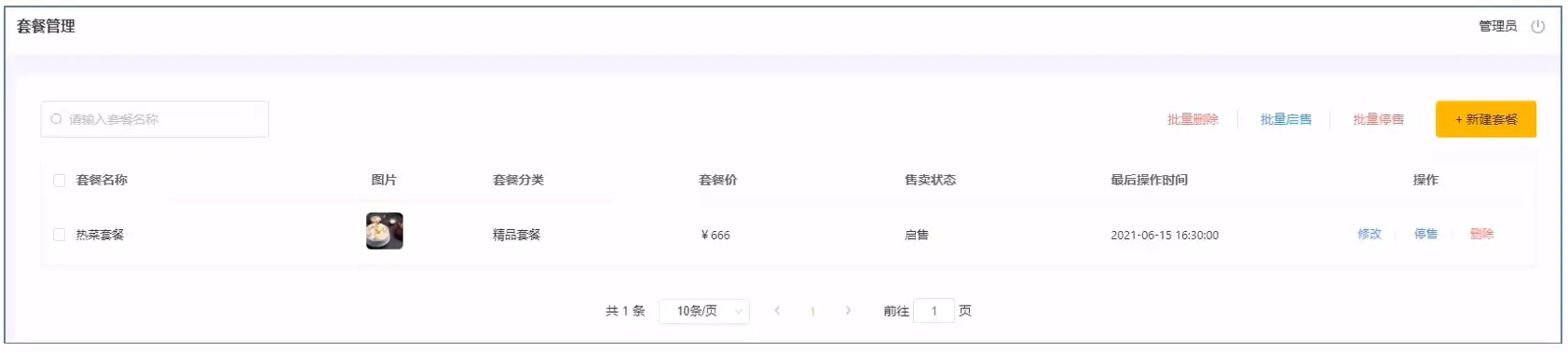

# 效果展示
# 新增套餐
# 需求分析
套餐就是菜品的集合。
后台系统中可以管理套餐信息,通过新增套餐功能来添加一个新的套餐,在添加套餐时需要选择当前套餐所属的套餐分类和包含的菜品,并且需要上传套餐对应的图片,在移动端会按照套餐分类来展示对应的套餐。
# 数据模型
新增套餐,其实就是将新增页面录入的套餐信息插入到setmeal表,还需要向setmeal_dish表插入套餐和菜品关联数据。所以在新增套餐时,涉及到两个表:

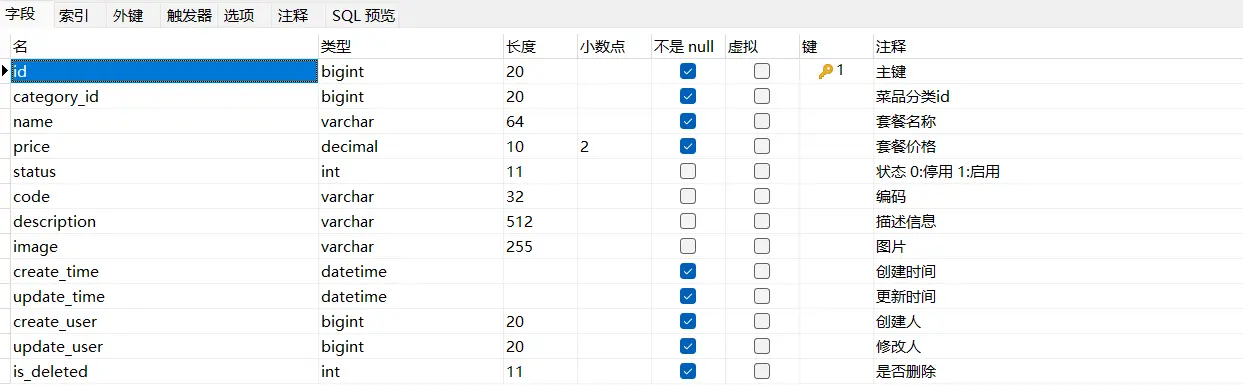

- setmeal 套餐表
# 代码开发
# 准备工作
在开发业务功能前,先将需要用到的类和接口基本结构创建好:
- 实体类SetmealDish
/**
* 套餐菜品关系
*/
@Data
public class SetmealDish implements Serializable {
private static final long serialVersionUID = 1L;
private Long id;
//套餐id
private Long setmealId;
//菜品id
private Long dishId;
//菜品名称 (冗余字段)
private String name;
//菜品原价
private BigDecimal price;
//份数
private Integer copies;
//排序
private Integer sort;
@TableField(fill = FieldFill.INSERT)
private LocalDateTime createTime;
@TableField(fill = FieldFill.INSERT_UPDATE)
private LocalDateTime updateTime;
@TableField(fill = FieldFill.INSERT)
private Long createUser;
@TableField(fill = FieldFill.INSERT_UPDATE)
private Long updateUser;
//是否删除
private Integer isDeleted;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
- DTO SetmealDto
@Data
public class SetmealDto extends Setmeal {
private List<SetmealDish> setmealDishes;
private String categoryName;
}
1
2
3
4
5
6
7
2
3
4
5
6
7
- Mapper接口SetmealDishMapper
public interface SetmealDishMapper extends BaseMapper<SetmealDish> {
}
1
2
2
- 业务层接口SetmealDishService
public interface SetmealDishService extends IService<SetmealDish> {
}
1
2
2
- 业务层实现类SetmealDishServicelmpl
@Service
@Slf4j
public class SetmealDishServiceImpl extends ServiceImpl<SetmealDishMapper, SetmealDish> implements SetmealDishService{
}
1
2
3
4
2
3
4
- 控制层SetmealController
/**
* @author frx
* @version 1.0
* @date 2022/5/12 18:16
* 套餐管理
*/
@RestController
@RequestMapping("/setmeal")
@Slf4j
public class SetmealController {
@Autowired
private SetmealService setmealService;
@Autowired
private SetmealDishService setmealDishService;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# 梳理交互过程
在开发代码之前,需要梳理一下新增套餐时前端页面和服务端的交互过程:
- 页面(backend/page/combo/add.html)发送ajax请求,请求服务器获取套餐分类数据并展示到下拉框中
- 页面发送ajax请求,请求服务端获取菜品分类数据并展示到添加菜品窗口中
- 页面发送ajax请求,请求服务端,根据菜品分类查询对应的菜品数据并展示到添加菜品窗口中
- 页面发送请求进行图片上传,请求服务端将图片保存到服务器
- 页面发送请求进行图片下载,将上传的图片进行回显
- 点击保存按钮,发送ajax请求,将套餐相关数据以json形式提交到服务端
开发新增套餐功能,其实就是在服务端编写代码去处理前端页面发送的这6次请求即可。
- 编写控制器
/**
*根据条件查询对应的菜品数据
* @param dish
* @return
*/
@GetMapping("/list")
public R<List<Dish>> list(Dish dish){
//构造查询条件
LambdaQueryWrapper<Dish> queryWrapper = new LambdaQueryWrapper<>();
queryWrapper.eq(dish.getCategoryId()!=null,Dish::getCategoryId,dish.getCategoryId());
//添加排序条件
queryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
List<Dish> list = dishService.list(queryWrapper);
return R.success(list);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
- 新增套餐分析
- SermelService.java
public interface SetmealService extends IService<Setmeal> {
/**
* 新增套餐,同时需要保存套餐和菜品的关系
* @param setmealDto
*/
public void saveWithDish(SetmealDto setmealDto);
}
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
- SermealServiceImpl.java
@Service
@Slf4j
public class SermealServiceImpl extends ServiceImpl<SetmealMapper, Setmeal> implements SetmealService {
@Autowired
private SetmealDishService setmealDishService;
//新增套餐,同时需要保存套餐和菜品的关系
@Transactional
@Override
public void saveWithDish(SetmealDto setmealDto) {
//保存套餐的基本信息,操作setmeal表,执行insert操作
this.save(setmealDto);
List<SetmealDish> setmealDishes = setmealDto.getSetmealDishes();
setmealDishes.stream().map((item) ->{
item.setSetmealId(setmealDto.getId());
return item;
}).collect(Collectors.toList());
//保存套餐和菜品的关联信息,操作setmeal_dish,执行insert操作
setmealDishService.saveBatch(setmealDishes);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
- 编写控制器
/**
* 新增套餐
* @param setmealDto
* @return
*/
@PostMapping
public R<String> save(@RequestBody SetmealDto setmealDto){
log.info("套餐信息:{}",setmealDto);
setmealService.saveWithDish(setmealDto);
return null;
}
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
# 功能测试
控制台输出
2022-05-12 23:04:21.743 INFO 15836 --- [nio-8088-exec-5] c.frx01.reggie.filter.LoginCheckFilter : 拦截到请求:/setmeal
2022-05-12 23:04:21.743 INFO 15836 --- [nio-8088-exec-5] c.frx01.reggie.filter.LoginCheckFilter : 用户已登录,用户id为;1
2022-05-12 23:04:21.743 INFO 15836 --- [nio-8088-exec-5] c.frx01.reggie.filter.LoginCheckFilter : 线程id为:44
2022-05-12 23:04:21.786 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.controller.SetmealController : 套餐信息:SetmealDto(setmealDishes=[SetmealDish(id=null, setmealId=null, dishId=1397851370462687234, name=邵阳猪血丸子, price=13800, copies=1, sort=null, createTime=null, updateTime=null, createUser=null, updateUser=null, isDeleted=null), SetmealDish(id=null, setmealId=null, dishId=1397850140982161409, name=毛氏红烧肉, price=6800, copies=1, sort=null, createTime=null, updateTime=null, createUser=null, updateUser=null, isDeleted=null), SetmealDish(id=null, setmealId=null, dishId=1413384757047271425, name=王老吉, price=500, copies=1, sort=null, createTime=null, updateTime=null, createUser=null, updateUser=null, isDeleted=null), SetmealDish(id=null, setmealId=null, dishId=1413385247889891330, name=米饭, price=200, copies=1, sort=null, createTime=null, updateTime=null, createUser=null, updateUser=null, isDeleted=null)], categoryName=null)
2022-05-12 23:04:21.793 ERROR 15836 --- [nio-8088-exec-5] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true, jdbcUrl : jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true, lastPacketReceivedIdleMillis : 135644
2022-05-12 23:04:21.795 ERROR 15836 --- [nio-8088-exec-5] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true, jdbcUrl : jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true, lastPacketReceivedIdleMillis : 170782
Creating a new SqlSession
Registering transaction synchronization for SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@4f8b98c0]
2022-05-12 23:04:21.865 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : 公共字段自动填充[insert]...
2022-05-12 23:04:21.865 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : org.apache.ibatis.reflection.MetaObject@74564133
JDBC Connection [com.mysql.cj.jdbc.ConnectionImpl@76ddf8da] will be managed by Spring
==> Preparing: INSERT INTO setmeal ( id, category_id, name, price, status, code, description, image, create_time, update_time, create_user, update_user ) VALUES ( ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
==> Parameters: 1524767442772692993(Long), 1413342269393674242(Long), 商务套餐-B套餐(String), 30000(BigDecimal), 1(Integer), (String), 无(String), 23a8e88a-e9b7-4d42-bf62-e289b4ad4f50.jpg(String), 2022-05-12T23:04:21.865(LocalDateTime), 2022-05-12T23:04:21.865(LocalDateTime), 1(Long), 1(Long)
<== Updates: 1
Releasing transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@4f8b98c0]
2022-05-12 23:04:22.275 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : 公共字段自动填充[insert]...
2022-05-12 23:04:22.275 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : org.apache.ibatis.reflection.MetaObject@7be389ad
JDBC Connection [com.mysql.cj.jdbc.ConnectionImpl@76ddf8da] will be managed by Spring
==> Preparing: INSERT INTO setmeal_dish ( id, setmeal_id, dish_id, name, price, copies, create_time, update_time, create_user, update_user ) VALUES ( ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
==> Parameters: 1524767444664324097(Long), 1524767442772692993(Long), 1397851370462687234(Long), 邵阳猪血丸子(String), 13800(BigDecimal), 1(Integer), 2022-05-12T23:04:22.275(LocalDateTime), 2022-05-12T23:04:22.275(LocalDateTime), 1(Long), 1(Long)
2022-05-12 23:04:22.276 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : 公共字段自动填充[insert]...
2022-05-12 23:04:22.276 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : org.apache.ibatis.reflection.MetaObject@5ca54c0d
==> Parameters: 1524767444664324098(Long), 1524767442772692993(Long), 1397850140982161409(Long), 毛氏红烧肉(String), 6800(BigDecimal), 1(Integer), 2022-05-12T23:04:22.276(LocalDateTime), 2022-05-12T23:04:22.276(LocalDateTime), 1(Long), 1(Long)
2022-05-12 23:04:22.277 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : 公共字段自动填充[insert]...
2022-05-12 23:04:22.277 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : org.apache.ibatis.reflection.MetaObject@5f122f21
==> Parameters: 1524767444664324099(Long), 1524767442772692993(Long), 1413384757047271425(Long), 王老吉(String), 500(BigDecimal), 1(Integer), 2022-05-12T23:04:22.277(LocalDateTime), 2022-05-12T23:04:22.277(LocalDateTime), 1(Long), 1(Long)
2022-05-12 23:04:22.278 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : 公共字段自动填充[insert]...
2022-05-12 23:04:22.278 INFO 15836 --- [nio-8088-exec-5] c.f.reggie.common.MyMetaObjectHandler : org.apache.ibatis.reflection.MetaObject@1995267f
==> Parameters: 1524767444664324100(Long), 1524767442772692993(Long), 1413385247889891330(Long), 米饭(String), 200(BigDecimal), 1(Integer), 2022-05-12T23:04:22.278(LocalDateTime), 2022-05-12T23:04:22.278(LocalDateTime), 1(Long), 1(Long)
Transaction synchronization committing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@4f8b98c0]
Transaction synchronization deregistering SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@4f8b98c0]
Transaction synchronization closing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@4f8b98c0]
2022-05-12 23:04:22.687 INFO 15836 --- [nio-8088-exec-7] c.frx01.reggie.filter.LoginCheckFilter : 拦截到请求:/setmeal/page
2022-05-12 23:04:22.687 INFO 15836 --- [nio-8088-exec-7] c.frx01.reggie.filter.LoginCheckFilter : 用户已登录,用户id为;1
2022-05-12 23:04:22.687 INFO 15836 --- [nio-8088-exec-7] c.frx01.reggie.filter.LoginCheckFilter : 线程id为:46
2022-05-12 23:04:22.687 WARN 15836 --- [nio-8088-exec-7] o.s.web.servlet.PageNotFound : No mapping for GET /setmeal/page
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# 套餐信息分页显示
# 需求分析
系统中的套餐数据很多的时候,如果在一个页面中全部展示出来会显得比较乱,不便于查看,所以一般的系统中都会以分页的方式来展示列表数据。
# 代码开发
# 梳理交互过程
在开发代码之前,需要梳理一下套餐分页查询时前端页面和服务端的交互过程:

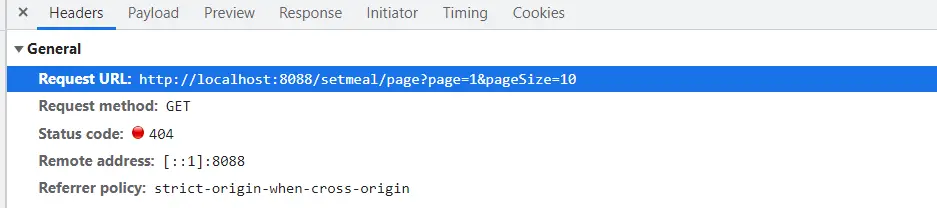

- 页面(backend/page/combo/list.htmit)发送ajax请求,将分页查询参数(page、pageSize,name)提交到服务端,获取分页数据
- 页面发送请求,请求服务端进行图片下载,用于页面图片展示
开发套餐信息分页查询功能,其实就是在服务端编写代码去处理前端页面发送的这2次请求即可。
- 编写处理器
/**
* 分页显示套餐信息
* @param page
* @param pageSize
* @param name
* @return
*/
@GetMapping("/page")
public R<Page> page(int page,int pageSize,String name){
//构建分页构造器对象
Page<Setmeal> pageInfo= new Page<>(page, pageSize);
Page<SetmealDto> dtoPage = new Page<>();
LambdaQueryWrapper<Setmeal> queryWrapper=new LambdaQueryWrapper<>();
//添加查询条件,根据name进行like模糊查询
queryWrapper.like(name!=null,Setmeal::getName,name);
//添加排序条件,根据更新时间来降序排列
queryWrapper.orderByDesc(Setmeal::getUpdateTime);
setmealService.page(pageInfo,queryWrapper);
//对象拷贝
BeanUtils.copyProperties(pageInfo,dtoPage,"records");
List<Setmeal> records = pageInfo.getRecords();
List<SetmealDto> list =records.stream().map((item)-> {
SetmealDto setmealDto = new SetmealDto();
//对象拷贝
BeanUtils.copyProperties(item,setmealDto);
//分类id
Long categoryId = item.getCategoryId();
Category category = categoryService.getById(categoryId);
if (category != null) {
//分类名称
String categoryName = category.getName();
setmealDto.setCategoryName(categoryName);
}
return setmealDto;
}).collect(Collectors.toList());
dtoPage.setRecords(list);
return R.success(dtoPage);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

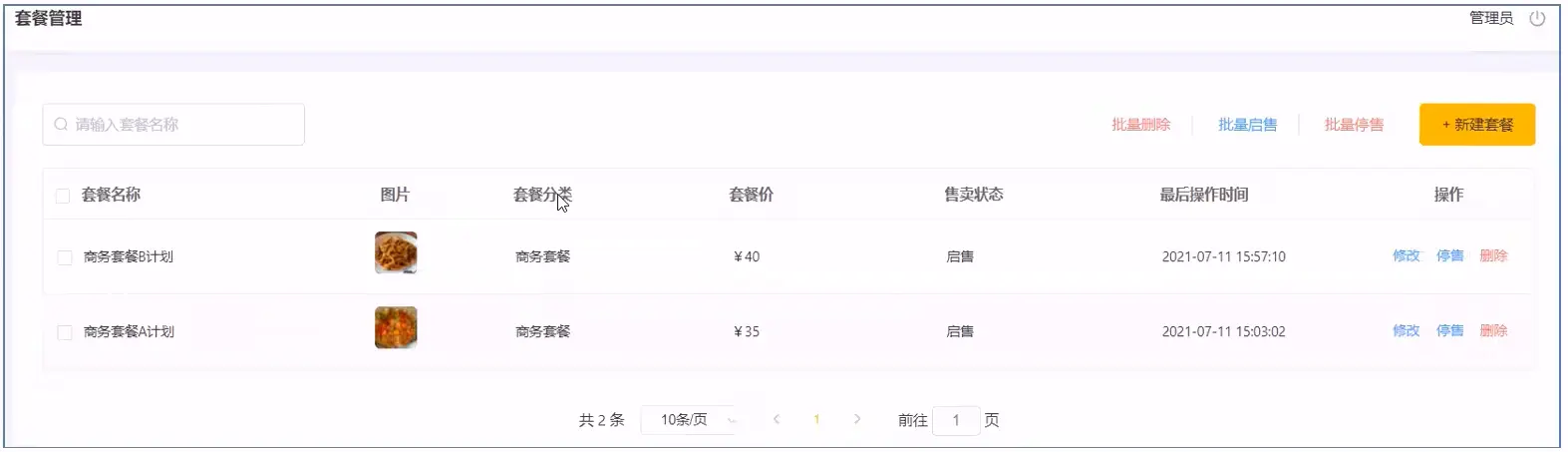

- 结果
# 修改套餐状态

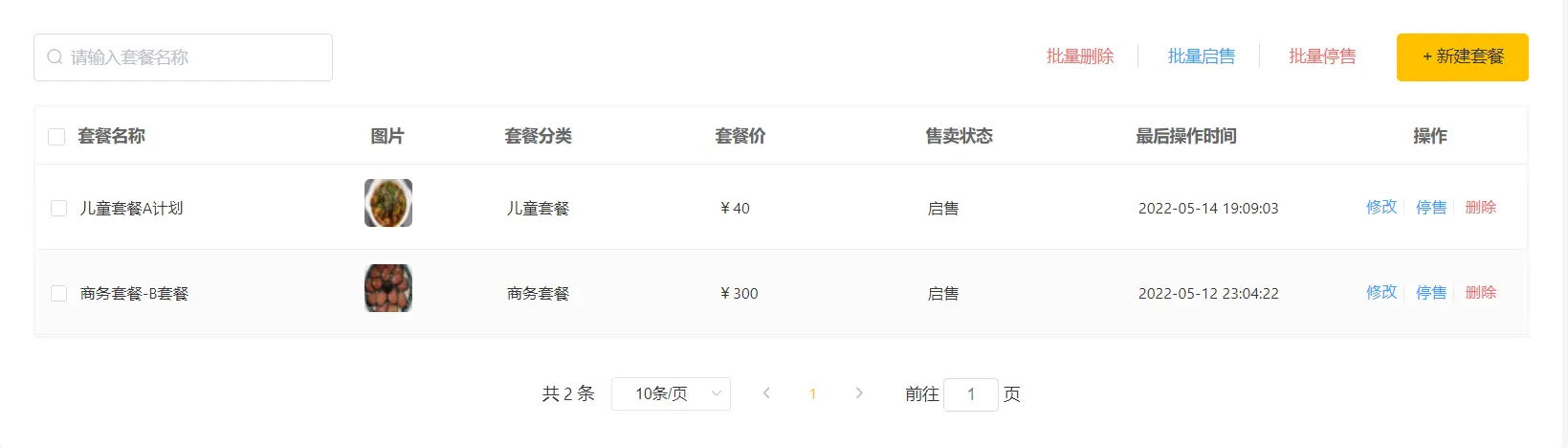

修改套餐状态为停售状态的
- 编写处理器
/**
* 修改套餐状态
* @param status
* @param ids
*/
@PostMapping("/status/{status}")
public R<String> status(@PathVariable Integer status, @RequestParam List<Long> ids) {
Setmeal setmeal = new Setmeal();
for (Long dishId : ids) {
setmeal.setId(dishId);
setmeal.setStatus(status);
setmealService.updateById(setmeal);
}
return R.success("修改成功");
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
3
4
5
6
7
8
9
10
11
12
13
14
15

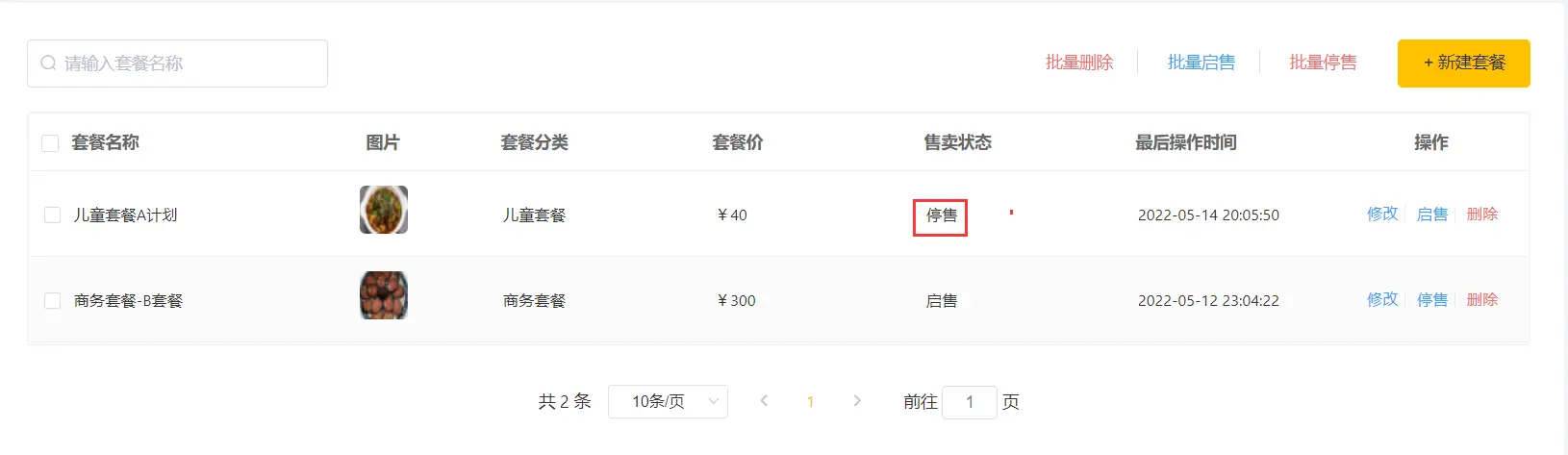

- 停售儿童套餐
# 删除套餐
# 需求分析

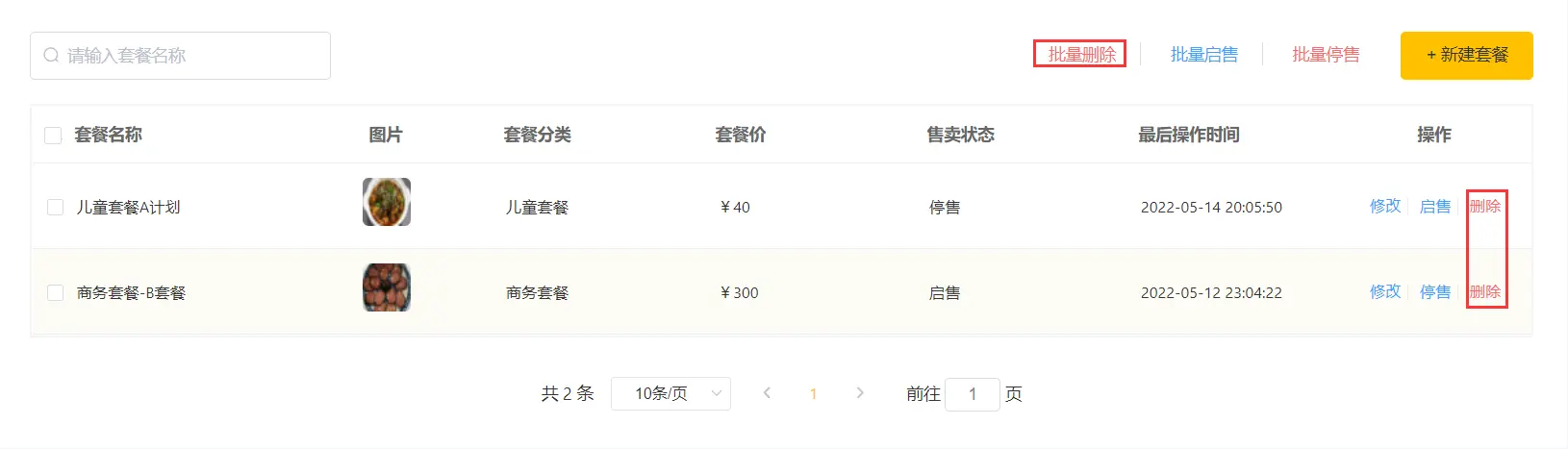

套餐管理列表页面点击删除按钮,可以删除对应的套餐信息。也可以通过复选框选择多个套餐,点击批量删余按钮一次删除多个套餐。注意,对于状态为售卖中的套餐不能删除,需要先停售,然后才能删除。
# 梳理交互过程
在开发代码之前,需要梳理一下删除套餐时前端页面和服务端的交互过程:

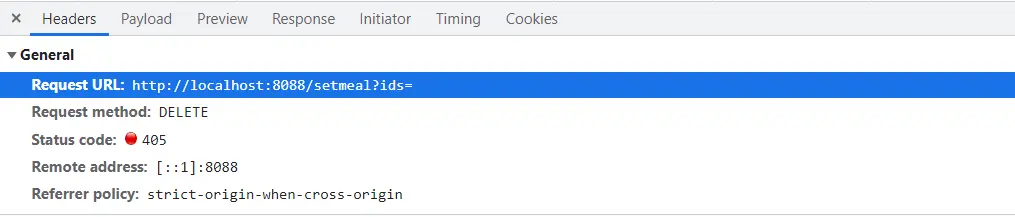

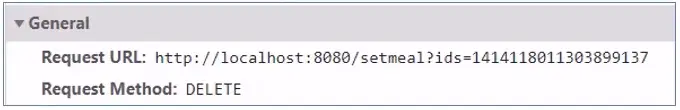

- 删除单个套餐时,页面发送ajax请求,根据套餐id删除对应套餐
- 删除多个套餐时,页面发送ajax请求,根据提交的多个套餐id删除对应套餐
开发删除套餐功能,其实就是在服务端编写代码去处理前端页面发送的这2次请求即可。

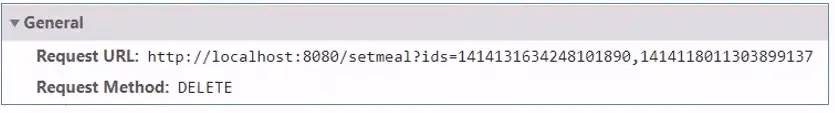

观察删除单个套餐和批量删除套餐的请求信息可以发现,两种请求的地址和请求方式都是相同的不同的则是传递的id个数,所以在服务端可以提供一个方法来统一处理。
- SetmealService.java
/**
* 删除套餐,同时需要删除套餐和菜品关联的数据
* @param ids
*/
public void removeWithDish(List<Long> ids);
1
2
3
4
5
2
3
4
5
- SermealServiceImpl.java
/**
* 删除套餐,同时需要删除套餐和菜品关联的数据
* @param ids
*/
@Transactional
@Override
public void removeWithDish(List<Long> ids) {
//select count(*) from setmeal where id in (1,2,3) and status = 1
//查询套餐状态,确定是否可用删除
LambdaQueryWrapper<Setmeal> queryWrapper=new LambdaQueryWrapper();
queryWrapper.in(Setmeal::getId,ids);
queryWrapper.eq(Setmeal::getStatus,1);
int count = this.count(queryWrapper);
if(count>0){
//如果不能删除,直接抛出一个业务异常
throw new CustomException("套餐正在售卖中,不能删除");
}
//如果可以删除,先删除套餐表中的数据--setmeal
this.removeByIds(ids);
//删除关系表中的数据--setmeal_dish
//delete from setmeal_dish where setmeal.id in (1,2,3)
LambdaQueryWrapper<SetmealDish> lambdaQueryWrapper=new LambdaQueryWrapper<>();
lambdaQueryWrapper.in(SetmealDish::getSetmealId,ids);
//删除关系表中的数据--setmeal_dish
setmealDishService.remove(lambdaQueryWrapper);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
- 编写处理器
/**
* 删除套餐
* @param ids
* @return
*/
@DeleteMapping
public R<String> delete(@RequestParam List<Long> ids){
log.info("ids:{}",ids);
setmealService.removeWithDish(ids);
return R.success("套餐数据删除成功");
}
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
# 功能测试
- 删除售卖中的
- 删除停售的儿童套餐
帮助我改善此页面 (opens new window)
上次更新: 2024年3月20日
